Stabilization / TSPL-STB-75
Model: TSPL-STB-75

Shipborne stabilization platform · 75 kg payload

A 2-axis, gyro-stabilized platform that counteracts roll and pitch disturbances on board ship. Three electric linear actuators hold the central mount level to within 0.5°, keeping antennas and EW payloads on target in harsh marine conditions.

±20°
Roll / pitch
≤0.5°
Accuracy
75 kg
Payload capacity
TSPL-STB-75 Roll / Pitch

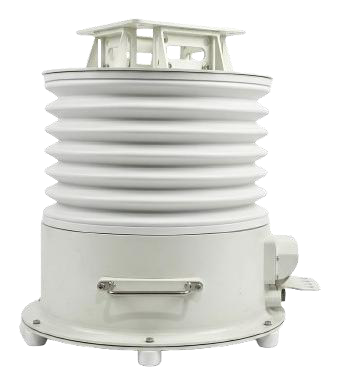

TSPL-STB-75 stabilization platform
Typical payloads
EW antennas MILCOM terminals Shipborne sensors

Key features

TSPL-STB-75
{{ f.num }}
{{ f.text }}

Specifications

{{ g.group }}
{{ r.label }} {{ r.value }}
Control software

Customizable graphical user interface

Live roll and pitch from the stabilization and platform gyros, actuator status and limits, built-in test, calibration and data logging — over Ethernet at a 50 ms command rate.

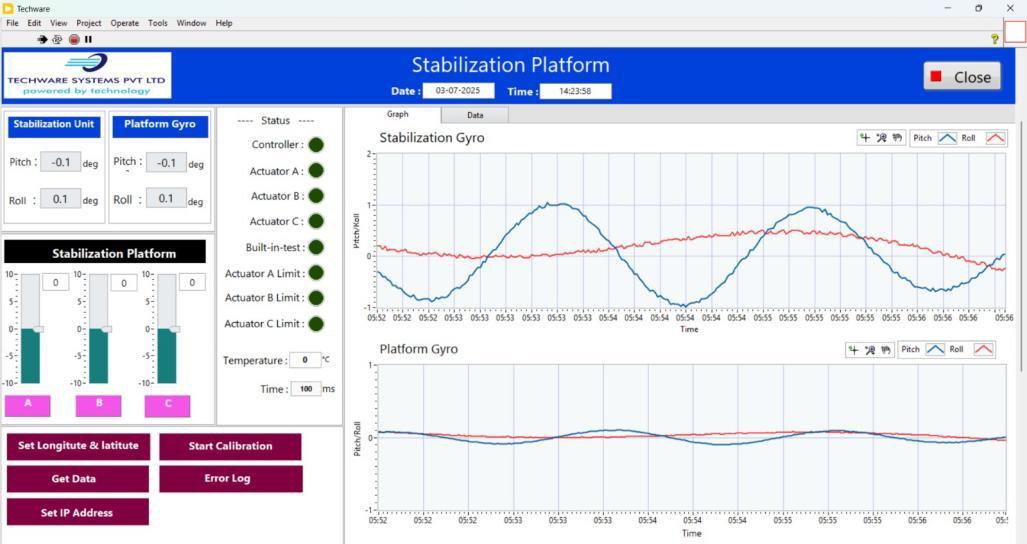

Stabilization platform GUI showing gyro graphs and actuator status

Need a stabilized mount for your shipborne payload?

Talk to our engineers
